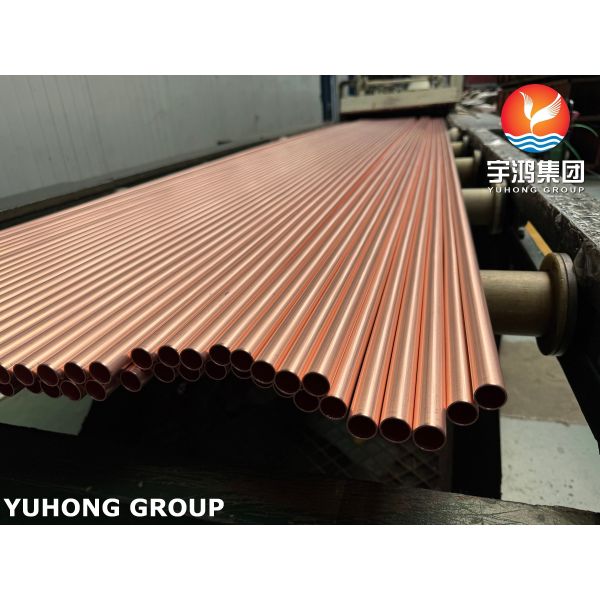

Copper and Copper alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
C12200 Tube also known as **DHP (Deoxidized High Phosphorus) Copper. This alloy is widely used in plumbing, HVAC (heating, ventilation, and air conditioning), and other industrial applications due to its excellent corrosion resistance, formability, and soldering/brazing properties.
Properties:
- High corrosion resistance(suitable for water and refrigerant systems)
- Excellent thermal & electrical conductivity
- Easy to braze, solder, and weld
- Good ductility & formability
- Non-toxic & safe for potable water systems(commonly used in plumbing)
Standards & Tempers:
- ASTM B42, B68, B75, B88, B251, B819(depending on tube type)
- Available in hard-drawn (rigid) or annealed (soft) tempers
Comparison with Other Copper Alloys:
- C10200 (Oxygen-Free Copper): Higher purity, used in electrical applications.
- C12000 (Phosphorus-Deoxidized Copper): Similar but with slightly different phosphorus content.
- C12200 (DHP Copper): Preferred for plumbing due to better brazing & corrosion resistance.
Chemical Composition of ASTM B111 C12200 Copper Tube
| Copper (including silver) | Phosphorus |
| > 99.90% | 0.015 – 0.040% |
Mechanical Properties
| Property | Annealed (O) | Half-Hard (H55) | Hard (H80) |
| Tensile Strength (MPa) | 205 - 275 | 275 - 345 | 345 - 415 |
| Yield Strength (MPa) | 50 - 100 | 100 - 200 | 200+ |
| Elongation (%) | ≥ 40 | 15 - 30 | ≤ 10 |
| Hardness (HV) | 40 - 60 | 80 - 110 | 110 - 150 |
1.Annealed (O):
Fully soft for maximum ductility.
Suitable for bending, forming, and welding.
Commonly used in heat exchangers and condensers.
2.Half-Hard (H55):
A balance between strength and ductility.
Ideal for applications requiring moderate mechanical strength and some flexibility.
3.Hard (H80):
Maximum strength with minimal elongation.
Used in high-pressure systems and environments where wear resistance is critical.
| Copper or Copper Alloy UNS No. | Description |
| C10100 | Oxygen-free electronic |
| C10200 | Oxygen-free without residual deoxidants |
| C10300 | Oxygen-free, extra low phosphorus |
| C10800 | Oxygen-free, low phosphorus |
| C12000 | Phosphorized, low residual phosphorus |
| C12200 | Phosphorized, high residual phosphorus |
| C14200 | Phosphorized, arsenical |
| C19200 | Phosphorized, 1 % iron |
| C23000 | Red Brass |
| C28000 | Muntz Metal |
| C44300 | Admiralty Metals, B, C, and D |
| C44400 | |
| C44500 | |
| C60800 | Aluminum Bronze |
| C61300 | |
| C61400 | Aluminum Bronze, D |
| C68700 | Aluminum Brass, B |
| C70400 | 95-5 Copper-Nickel |
| C70600 | 90-10 Copper-Nickel |
| C70620 | 90-10 Copper-Nickel—Welding Grade |
| C71000 | 80-20 Copper-Nickel |
| C71500 | 70-30 Copper-Nickel |
| C71520 | 70-30 Copper-Nickel—Welding Grade |
| C71640 | Copper-nickel-iron-manganese |
| C72200 | |
Application of ASTM B111 C12200 Copper Tube:
- Plumbing pipes(water supply lines)
- HVAC refrigerant lines
- Hydraulic & pneumatic systems
- Medical gas tubing
- Heat exchangers & condensers
