ASTM A335 P9 SERRATED FIN TUBE For Oil Refining Condencer
1. Introduction to ASTM A335 P9 Material
ASTM A335 P9 is a chromium-molybdenum alloy steel widely used in high-temperature and high-pressure applications. It is known for its excellent strength, corrosion resistance, and ability to withstand thermal and mechanical stresses. Key features of ASTM A335 P9 include:
-
Material Composition:
- Chromium (Cr): 8.0-10.0%
- Molybdenum (Mo): 0.90-1.10%
- Carbon (C), Manganese (Mn), Silicon (Si), Phosphorus (P), Sulfur (S), and others.
-
Applications:
- Power plants
- Boilers
- Heat exchangers
- Petrochemical and chemical industries
-
Advantages:
- High resistance to oxidation and scaling at elevated temperatures.
- Excellent strength and creep resistance.
- Superior weldability and machinability.
2. What is a Serrated Fin Tube?
A serrated fin tube is a type of extended surface heat exchanger tube designed to enhance heat transfer efficiency. It consists of fins attached to the outer surface of a base tube. The serrated, or notched, design of the fins increases the surface area and promotes turbulence in the fluid flow, significantly improving heat transfer performance.
3. ASTM A335 P9 Serrated Fin Tube
ASTM A335 P9 serrated fin tubes combine the superior properties of the base material (P9 alloy steel) with the enhanced heat transfer capabilities of serrated fins. This combination makes them ideal for demanding heat transfer applications in high-temperature and high-pressure environments.
-
Manufacturing Process:
- Base Tube Production: The base tube is made from ASTM A335 P9 alloy steel, ensuring high strength and resistance to thermal stress.
- Fin Attachment: Serrated fins, typically made from similar or compatible materials, are helically wound and securely attached to the base tube. The attachment can be achieved through techniques like high-frequency welding or mechanical wrapping.
- Fin Serration: The fins are serrated (notched) to increase turbulence in the fluid flow, which improves heat transfer efficiency.
-
Specifications:
- Material:
- Base Tube: ASTM A335 P9
- Fins: Carbon steel, stainless steel, or alloy steel
- Tube Dimensions:
- Outer Diameter (OD): As per design requirements (commonly between 1" to 8")
- Wall Thickness: As per ASTM A335 P9 standards
- Fin Dimensions:
- Fin Height: Typically 5mm-15mm
- Fin Pitch: 2mm-10mm
- Fin Thickness: 0.5mm-1.5mm
- Operating Conditions:
- Temperature: Up to 600–650°C (dependent on material selection)
- Pressure: Suitable for high-pressure systems
4. Advantages of ASTM A335 P9 Serrated Fin Tubes
- High Thermal Efficiency: The serrated design promotes turbulence in fluid flow, improving heat transfer rates.
- Durability: The P9 alloy steel base tube provides exceptional resistance to high temperatures, oxidation, and thermal stresses.
- Corrosion Resistance: Chromium and molybdenum in P9 enhance resistance to corrosion and scaling.
- Energy Savings: Improved heat transfer efficiency reduces energy consumption and operational costs.
- Customization: Serrated fins can be tailored to specific dimensions, pitches, and thicknesses to meet application requirements.
5. Applications of ASTM A335 P9 Serrated Fin Tubes
6. Quality Standards and Testing
To ensure reliability and performance, ASTM A335 P9 serrated fin tubes are manufactured and tested according to stringent quality standards, including:
7. Conclusion
ASTM A335 P9 serrated fin tubes are an essential component in modern heat transfer applications, offering unmatched performance in high-temperature and high-pressure environments. Their combination of durability, efficiency, and customization makes them a preferred choice in industries like power generation, oil and gas, and petrochemicals. By selecting ASTM A335 P9 serrated fin tubes, businesses can achieve enhanced energy efficiency, reduced costs, and reliable performance over extended service lives.
Product Tags:
|
|

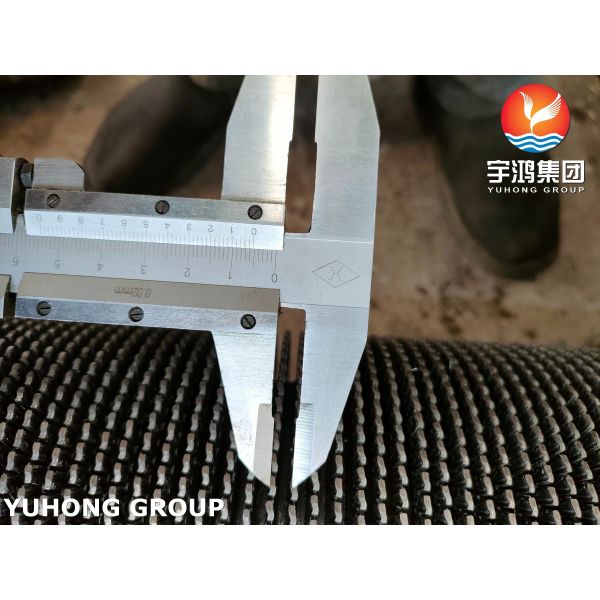

ASTM A335 P9 SERRATED FIN TUBE For Oil Refining Condencer Images
|
